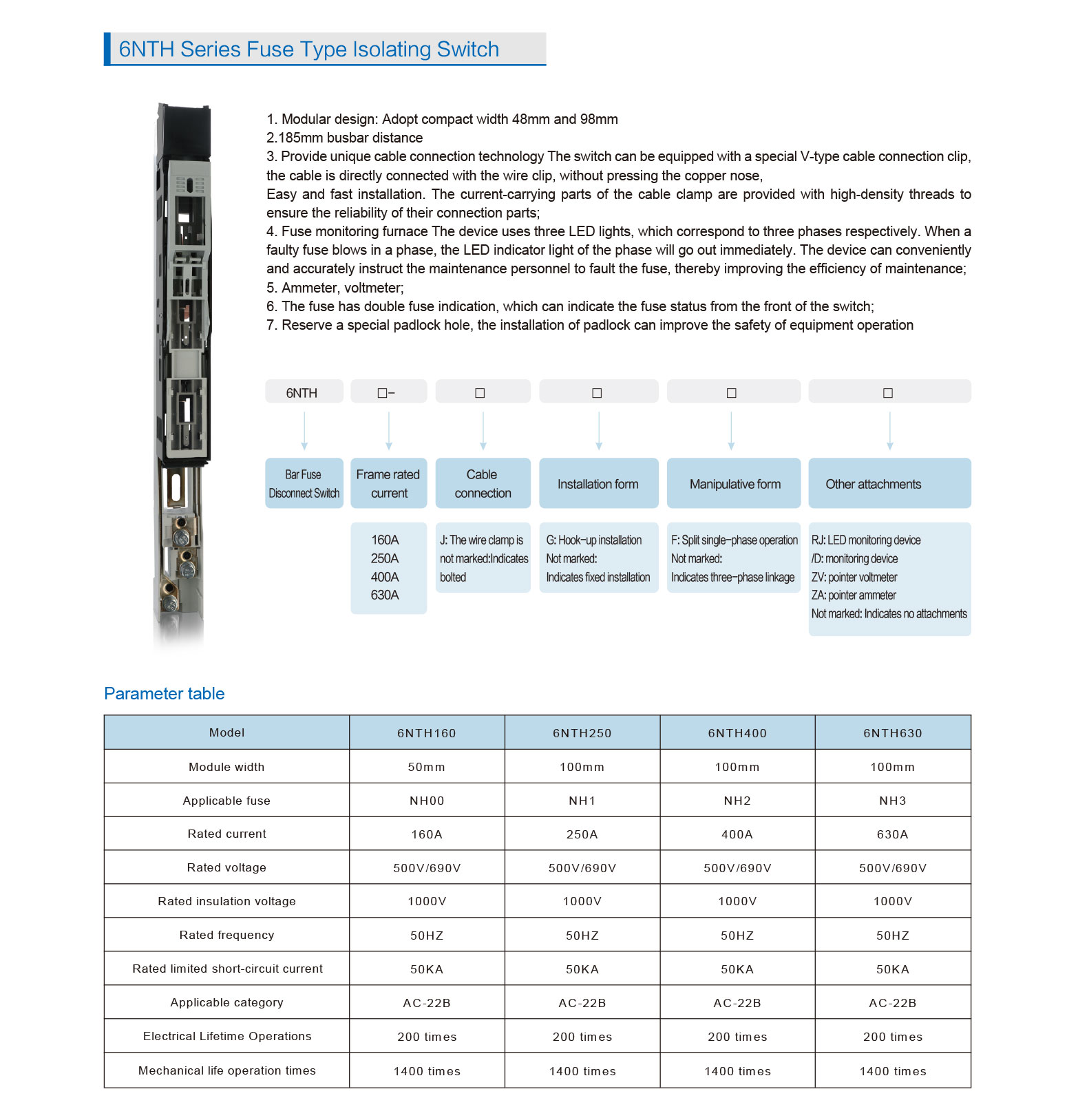

6NTH Series Fuse Type Isolating Switch
1. Modular design: Adopt compact width 48mm and 98mm
2.185mm busbar distance
3. Provide unique cable connection technology The switch can be equipped with a special V-type cable connection clip, the cable is directly connected with the wire clip, without pressing the copper nose, Easy and fast installation. The current-carrying parts of the cable clamp are provided with high-density threads to ensure the reliability of their connection parts;
4. Fuse monitoring furnace The device uses three LED lights, which correspond to three phases respectively. When a faulty fuse blows in a phase, the LED indicator light of the phase will go out immediately. The device can conveniently and accurately instruct the maintenance personnel to fault the fuse, thereby improving the efficiency of maintenance;
5. Ammeter, voltmeter;
6. The fuse has double fuse indication, which can indicate the fuse status from the front of the switch;
7. Reserve a special padlock hole, the installation of padlock can improve the safety of equipment operation
