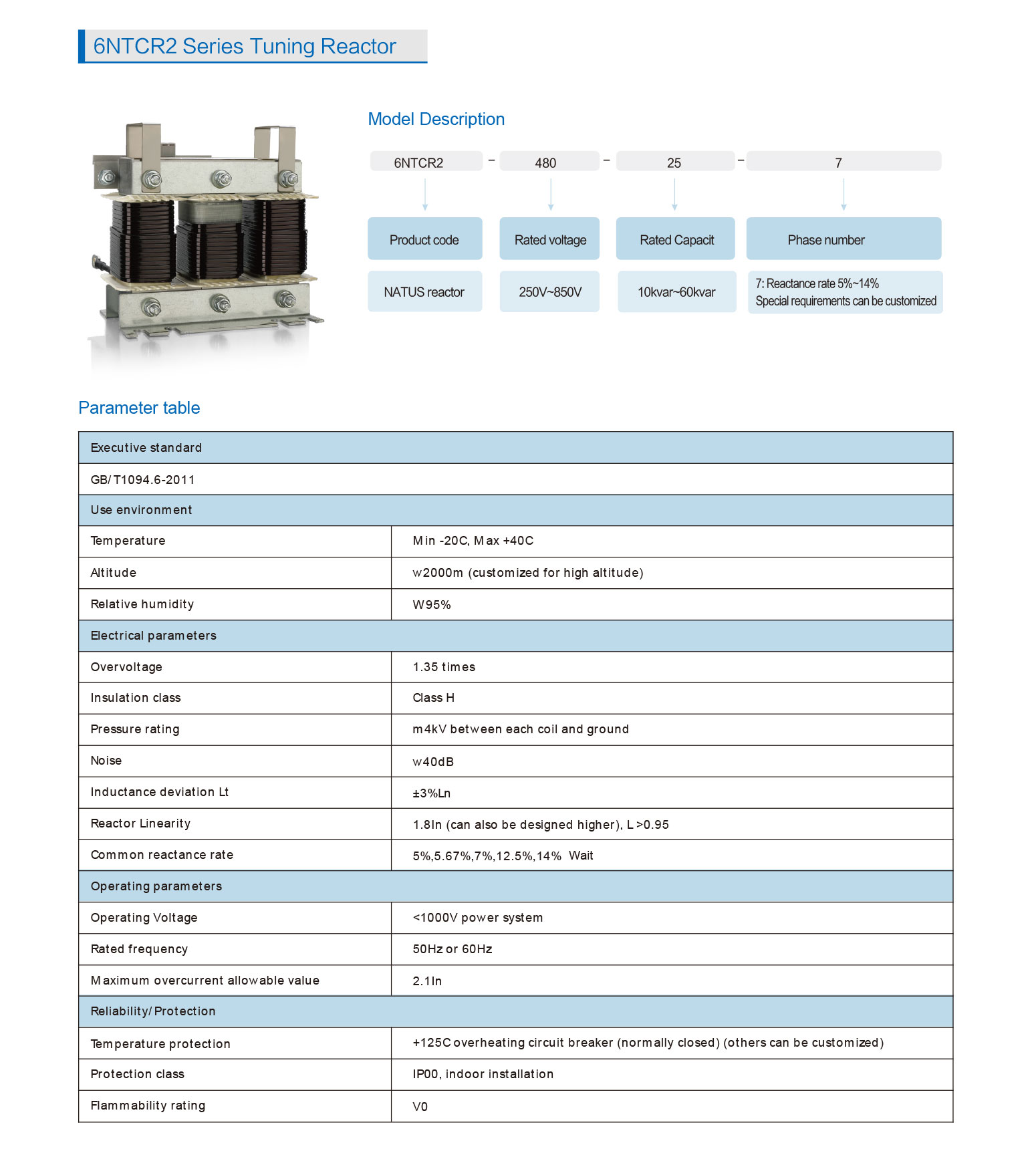

6NTCR2 Series Tuning Reactor
The 6NTCR2 Series Tuned Reactors are designed for use in low-voltage reactive power compensation cabinets, connected in series with capacitors. When there are a large number of harmonic sources such as rectifiers and converters in the low-voltage power grid, the high-order harmonics generated will seriously endanger the safe operation of main transformers and other electrical equipment.
When the reactors are connected in series with capacitors, they can effectively absorb power grid harmonics, improve the voltage waveform of the system, and increase the system power factor. In addition, they can effectively suppress switching inrush currents and switching overvoltages, thus providing reliable protection for capacitors.
This series of reactors is manufactured with high-quality magnetic conductive materials and oxygen-free copper coils. It features low loss and high anti-saturation capacity, enabling long-term stable operation in complex harmonic environments. It is compatible with low-voltage capacitors of different capacities to form a precise tuning and filtering circuit.
Its structural design balances heat dissipation and anti-interference performance, and its sealing protection class meets the requirements of industrial low-voltage scenarios. The reactor can be directly embedded into existing reactive power compensation cabinets without the need for major modifications to the cabinet structure.
