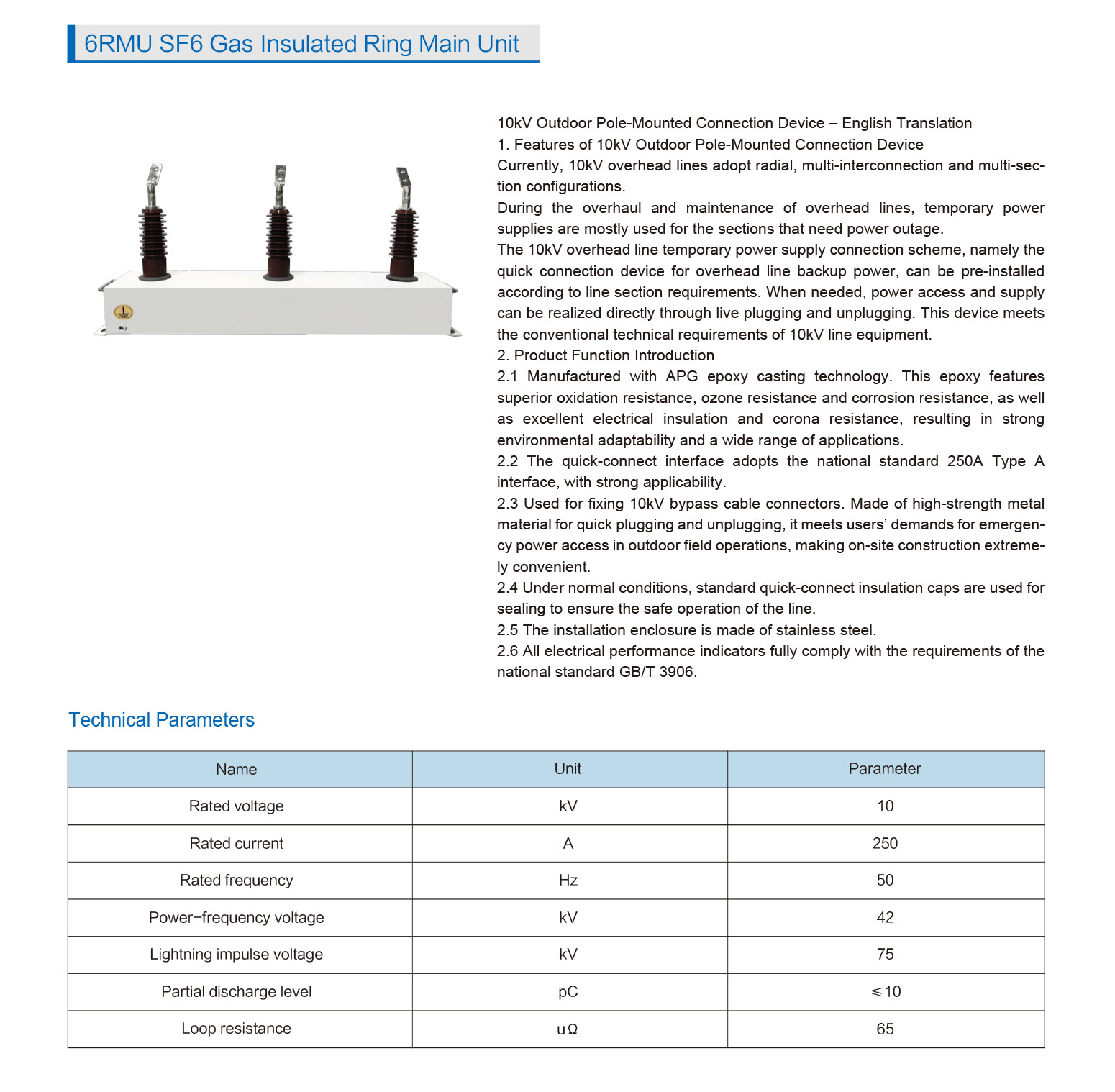

Features of 6NT250ZF-12 Series 10kV Outdoor Pole-Mounted Connection Device
At present, 10kV overhead lines are configured in radial, multi-connection and multi-section modes. For the sections requiring power outage during the inspection and maintenance of overhead lines, temporary power supplies are mostly adopted for power supply.
The temporary power access scheme for 10kV overhead lines, namely the standby power quick connection device for overhead lines, can be pre-installed according to the line sectioning requirements. When necessary, it can directly realize power drawing and transmission through live plug-in operation. This device meets the conventional technical requirements of 10kV line equipment.
Product Function IntroductionIt is manufactured via the APG epoxy casting process. The epoxy material boasts excellent oxidation resistance, ozone resistance and corrosion resistance, as well as superior electrical insulation performance and corona resistance, thus delivering strong environmental adaptability and a wide range of applications.
The quick-connect interface complies with the national standard 250A Type A interface, featuring high applicability.
Designed for fixing 10kV bypass cable connectors, it adopts high-strength metal material to enable quick plugging and unplugging, which meets the emergency power supply requirements of users for outdoor field operations and allows extremely convenient on-site construction.
Under normal conditions, it is sealed with a standard quick-connect insulating cap to ensure the safe operation of the circuit.
The installation housing is made of stainless steel material.
All electrical performance indicators fully meet the requirements of the national standard GB/T 3906.
